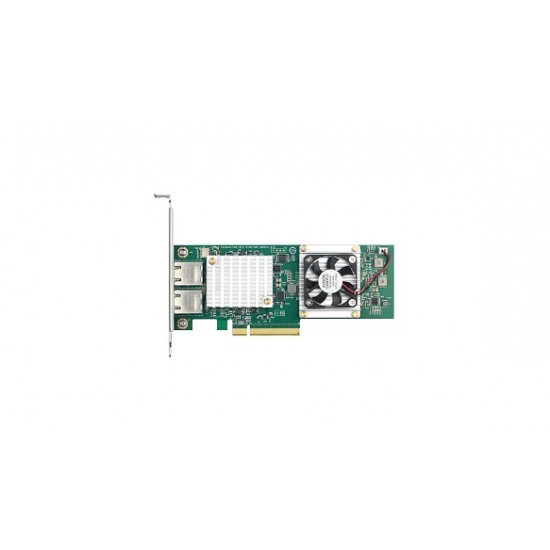

DLINK DXE-820T DUAL PORT 10GBASE-T PCI EXPRESS

Standards

• IEEE 802.1Q VLAN tagging
• IEEE 802.3x flow control
• IEEE 802.3an 10GBASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3ad teaming
• PCI Express x8 2.0, 5 GT/s compliant

Power

• Maximum Power Consumption: 23.38 W
• Input Voltage: 3.3 V and 12 V

Data Transfer Rate

• 1 Gbps Full Duplex
• 10 Gbps Full Duplex
• Auto mode (support 100 Mbps)

Transmit Distance

• 10GBASE-T
  • 100M with Cat 6A or higher UTP
  • 50M with Cat 6 UTP
• 100/1000BASE-T
  • 100M with Cat 5 or higher UTP

Interface Slot

• PCI Express v2.0 x8/x16 slot
• Includes standard and low profile brackets

Supported Functions

• NIC partitioning
• Other performance features
• TCP, IP, UDP checksum
• TCP segmentation
• Adaptive interrupts
• Receive Side Scaling (RSS)
• Manageability
• Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB
• SMBus controller
• IPMI support (IPMI pass thru mode)
• Advanced network features
• Jumbo frames (up to 9 KB)
• Virtual LANs
• Smart load balancing teaming
• LiveLink (supported in both the 32-bit and 64-bit Windows operating systems)
• Logical Link Control (IEEE Std 802.2)
• Layer-2 Priority Encoding (IEEE Std 802.1p)
• High-speed on-chip RISC processor
• Up to 3 classes of service (CoS)
• Integrated 96 KB frame buffer memory
• Quality of Service (QoS)
• Support for multicast addresses via 256 bits hashing hardware function
• JTAG support
• PCI Power Management Interface (v1.1)
• 64-bit BAR support
• iSCSI Boot support
• Virtualization
• Microsoft
• VMware
